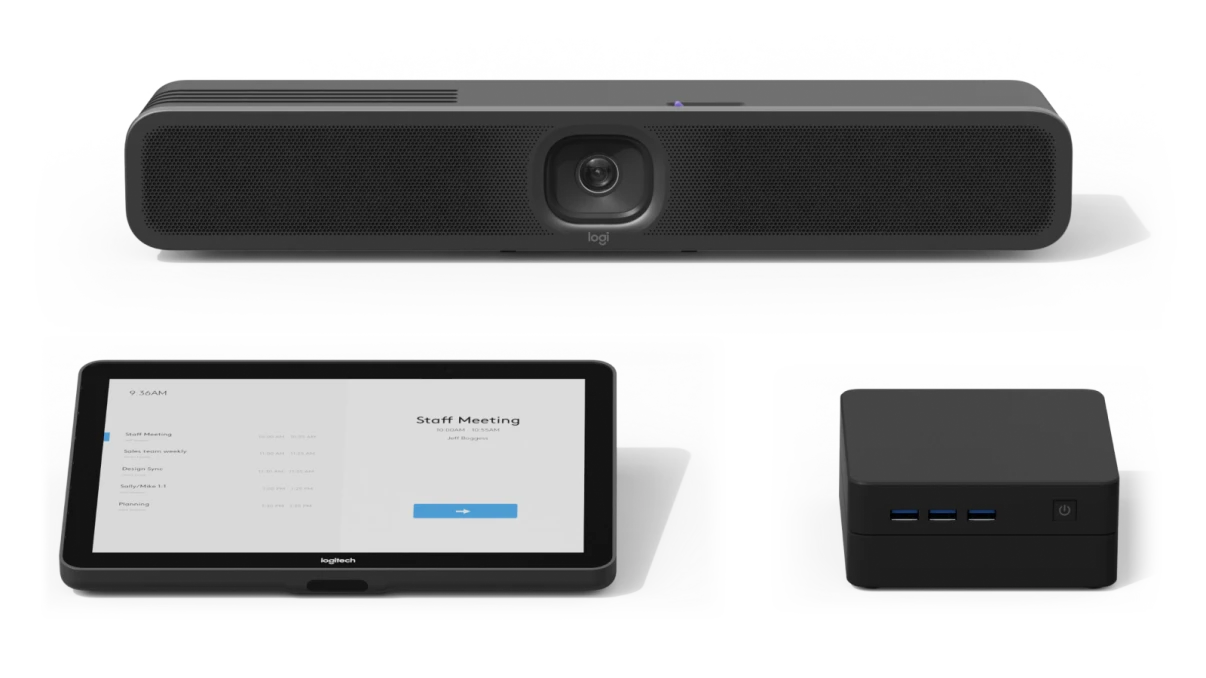

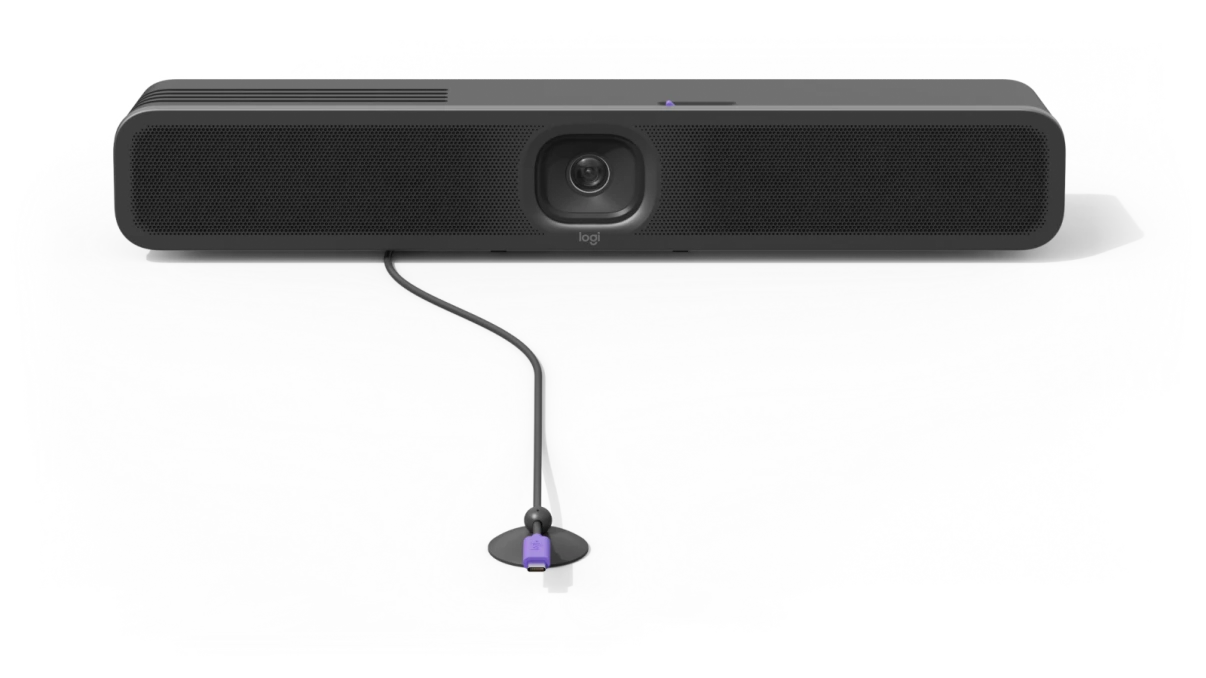

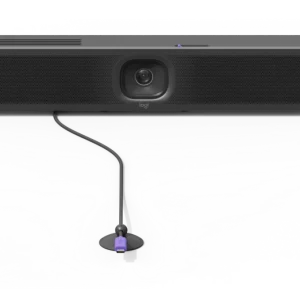

LOGITECH Meetup 2 (PN: 960-001681)
LOGITECH Meetup 2 (PN: 960-001681) - Image 2

LOGITECH Meetup 2 (PN: 960-001681)

Category:
Hubungi Kami
Overview
  • Built-in Components
  • 6 DMIC microphone array
  • Digital PTZ camera
  • 1 full range ported speaker
  • Cable management & retention system
  • Multi-mount
  • Logitech CollabOS platform
  • Logitech RightSight 2
  • Logitech RightSound 2
General Specifications
  • Enclosure: All-in-one enclosure
  • Device Management: Logitech Sync
  • Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
  • Display Resolution: 1080p
  • Network Protocol Support: IPv4, IPv6
  • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
  • RoomMate Compatibility: Not compatible with Logitech RoomMate, MeetUp 2 can be deployed in PC and BYOD mode only.
Camera
  • Digital pan: ±48° at 4x zoom
  • Digital Tilt: ±32° at 4x zoom
  • Zoom: 4X HD digital zoom
  • Diagonal Field of View: 120°
  • Horizontal Field of View: 113°
  • Vertical Field of View: 80°
  • Resolution: 4K
Speakers
  • Driver: 2.17 in (55 mm) with bass reflex enclosure and patented suspension design
  • Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
  • Rated Power: 8W THD at 1W, 1kHz : <2%
  • Speaker Sampling Rate: 48KHz
  • Impedance: 4 Ohms
Microphones
  • Frequency Response: 90Hz – 16kHz
  • Sensitivity: -36dBFS +/-1 dB @ 1Pa
  • Microphone data rate output: 48 kHz
  • Pickup Range: Up to 23 ft (7m)
  • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
  • Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
  • Noise suppression: AI based de-noising algorithm
Interfaces
  • HDMI Out: 1
  • HDMI In: 1
  • USB: 1 x Type C USB 3.1
  • Network: 10/100/1G Ethernet
  • WiFi: 802.11a/b/g/n/ac/ax
  • Bluetooth: Bluetooth® Low Energy
Power and Cables
  • Power supply: Auto-sensing
  • Operating Voltage/Power: 100-240V, 19V, 2.1A
  • Power Supply Dimensions: 4.49 x 1.85in (114x 47 mm) x 32.3 mm
  • DC Cable: 9.84 ft (3 m)
  • USB C to USB C 3.0 Cable: 9.84 ft (3 m)
Environmental
  • Operating temperature: 0 to 40°C
  • Storage temperature: -25-70°C
  • Humidity: 10 to 90%
Security
  • File Based Encryption: AES-128
  • Data Encryption: Symmetric Keys, PKI
  • Device Identity: Protected by device attestation
  • Device Access: Authenticated using API
  • Key Protection: Arm TrustZone, RPMP
  • Physical Security: Kensington security slot
