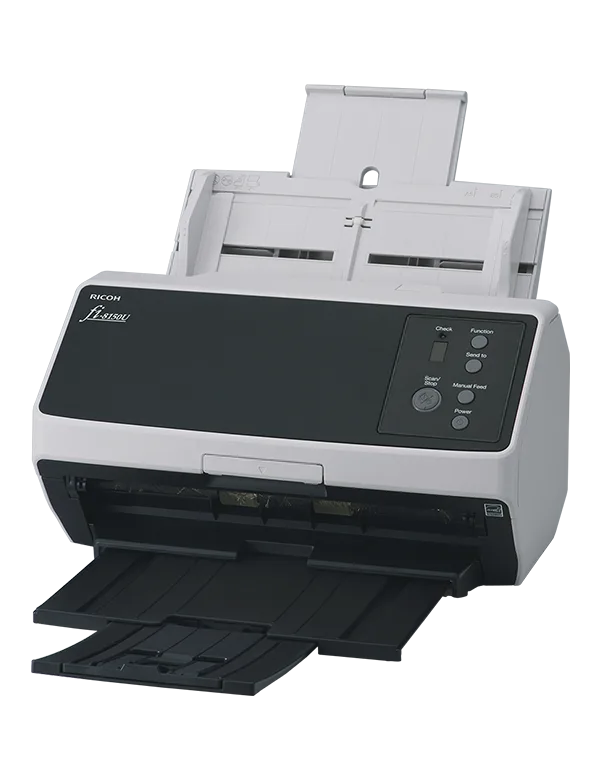

RICOH Scanner Fi-8150u (Usb only) Adf ,Duplex, A4, 100Lb , 50ppm

Scanner Type

ADF (Automatic Document Feeder) / Manual Feed, Duplex

Scanning Speed^*1 (A4 Portrait)
(Color^*2/Grayscale^*2/Monochrome^*3)

– Simplex: 50 ppm (200/300 dpi)
– Duplex: 100 ipm (200/300 dpi)

Image Sensor Type

CIS x 2 (front x 1, back x 1)

Light Source

RGB LED x 2 (front x 1, back x 1)

Optical Resolution

600 dpi

Output Resolution^*4
(Color / Grayscale / Monochrome)

50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)^*5

Output Format

Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Background Colors

White / Black (selectable)

Document Size

– Maximum^*6: 215.9 x 355.6 mm (8.5 x 14 in.)
– Minimum: 48 x 50 mm (1.9 x 2 in.)
– Long Page Scanning: 6,096 mm (240 in.)

Paper Weight (Thickness)

– Paper: 20 to 465 g/m² (5.3 to 124 lb)^*7
– Booklet: Less than 7 mm (0.276 in.)^*8
– Plastic Card: 1.4 mm (0.055 in.) or less^*9

ADF Capacity^*10*11

100 sheets (A4 80 g/m² or Letter 20 lb)

Expected Daily Volume^*12

8,000 sheets

Multifeed Detection

Overlap detection (Ultrasonic sensor), Length detection

Paper Protection

Image Monitoring

Interface

USB: USB 3.2 Gen1x1 / USB 2.0 / USB 1.1

Power Requirements

AC 100V – 240V 50/60 Hz

Power Consumption

– Operating Mode: 21 W or less / 17 W (Eco mode)
– Sleep Mode: LAN: 2.0 W or less / USB: 1.4 W or less
– Auto Standby (Off) Mode: 0.2 W or less

Operating Environment

– Temperature: 5 to 35 °C (41 to 95 °F)
– Relative Humidity: 15 to 80% (Non-condensing)

Environmental Compliance

ENERGY STAR, RoHS

Dimensions (W x D x H)^*13

300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)

Weight

4 kg (8.8 lb)

Supported Operating System

Windows 11^*14, Windows 10^*14, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS^*15, Linux (Ubuntu)^*15

Software / Drivers

PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver^*16, Image Scanner Driver for macOS (ICA)^*16*17, Image Scanner Driver for Linux (SANE)^*17*18, PaperStream Capture, PaperStream ClickScan^*17, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™^*17, Scanner Central Admin Server

Image Processing Functions

Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold

Included Items

ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
